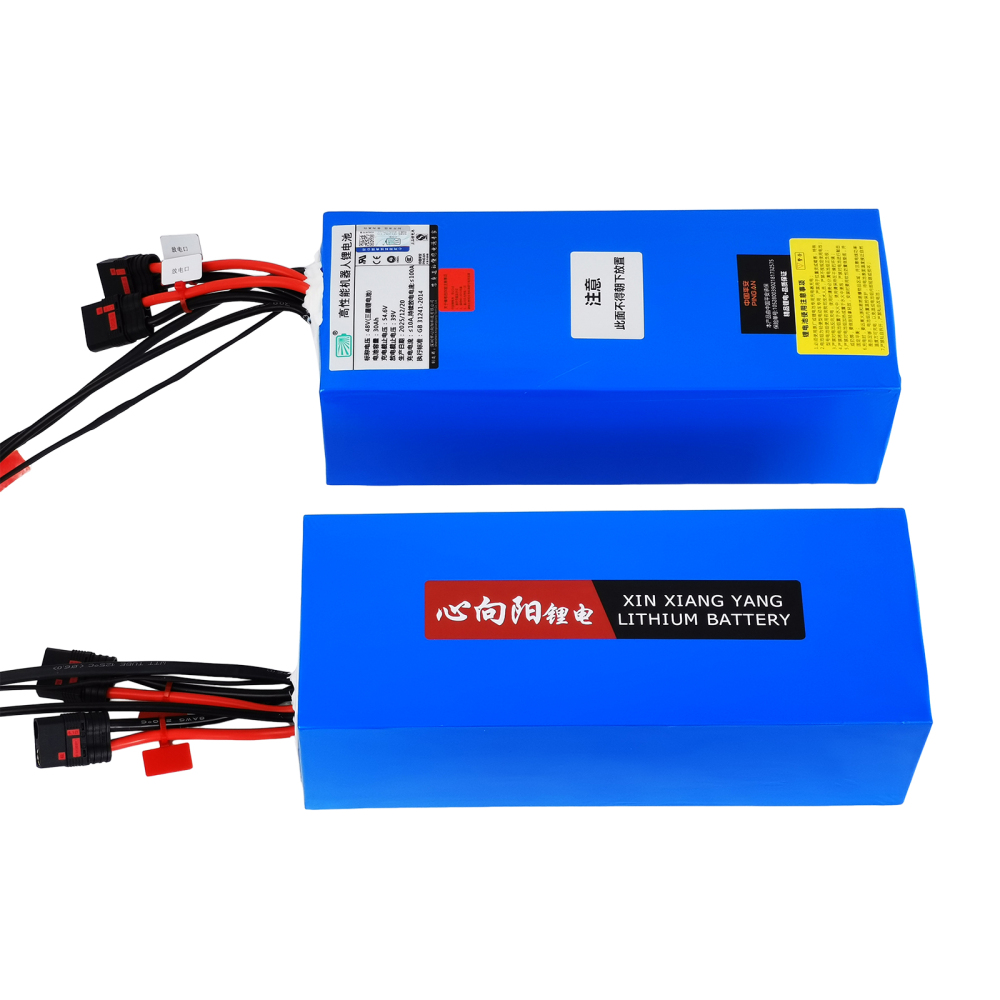

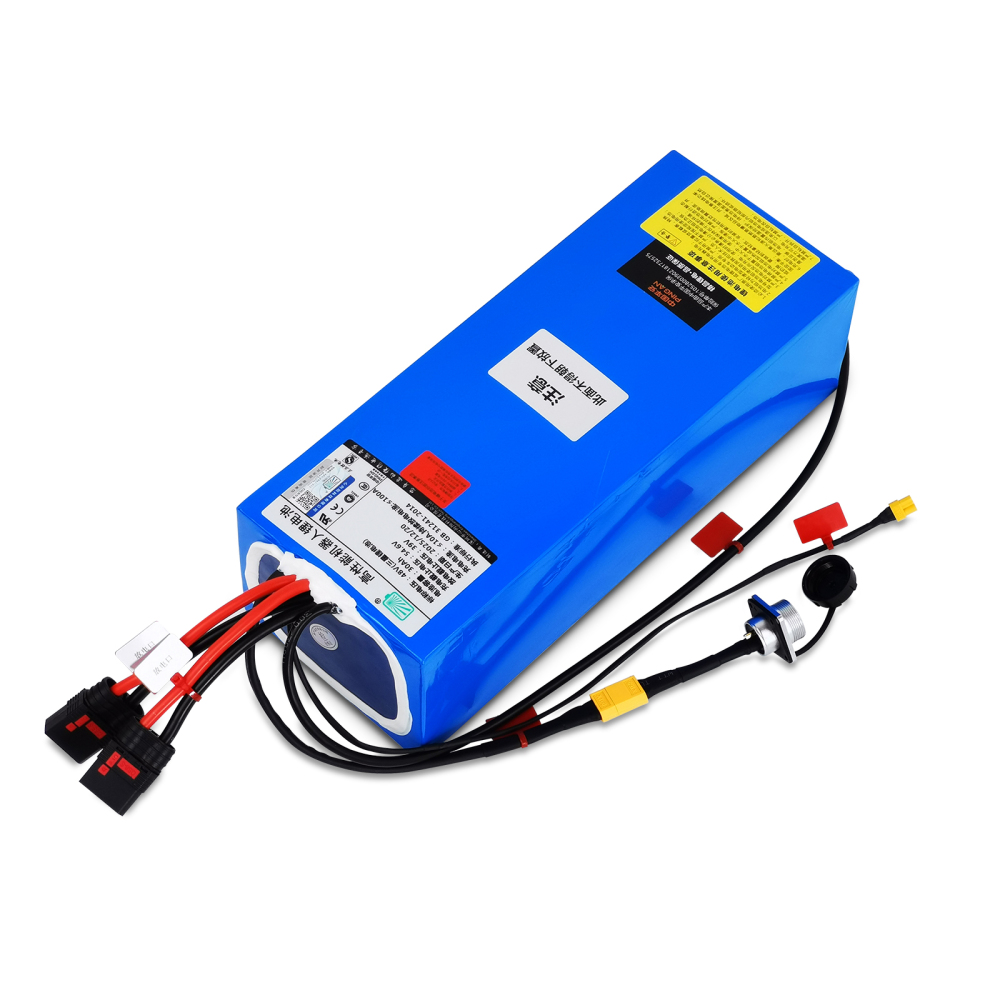

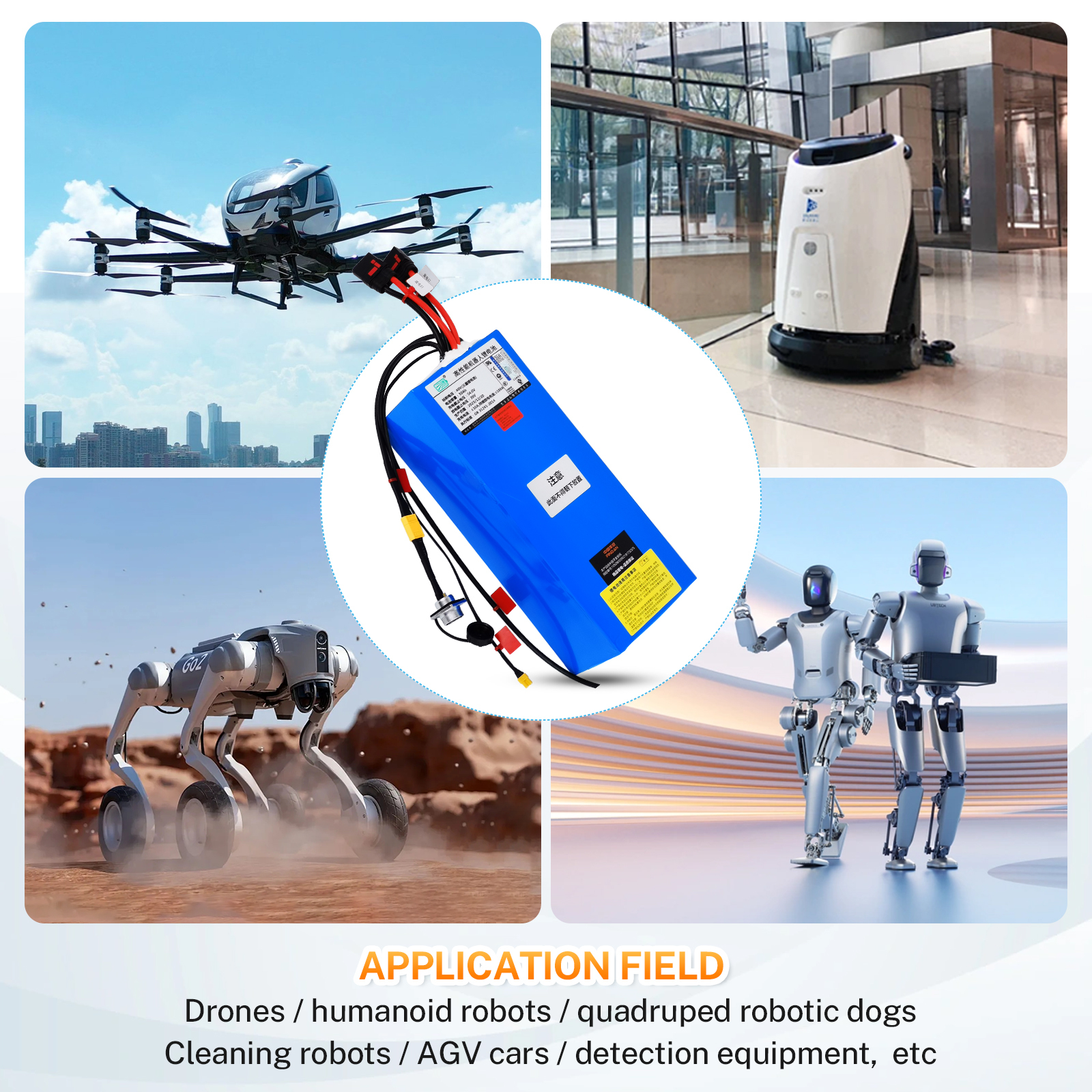

48V 30Ah Lithium Battery Powered by Samsung 21700 50S Cells (13S6P) Delivers Stable, Precise Power for Robot Lab Tests—150A Maximum Discharge Current, 100A Continuous Discharge, RS485 Communication

48V 30Ah Lithium Battery Powered by Samsung 21700 50S Cells (13S6P) Delivers Stable, Precise Power for Robot Lab Tests—150A Maximum Discharge Current, 100A Continuous Discharge, RS485 Communication

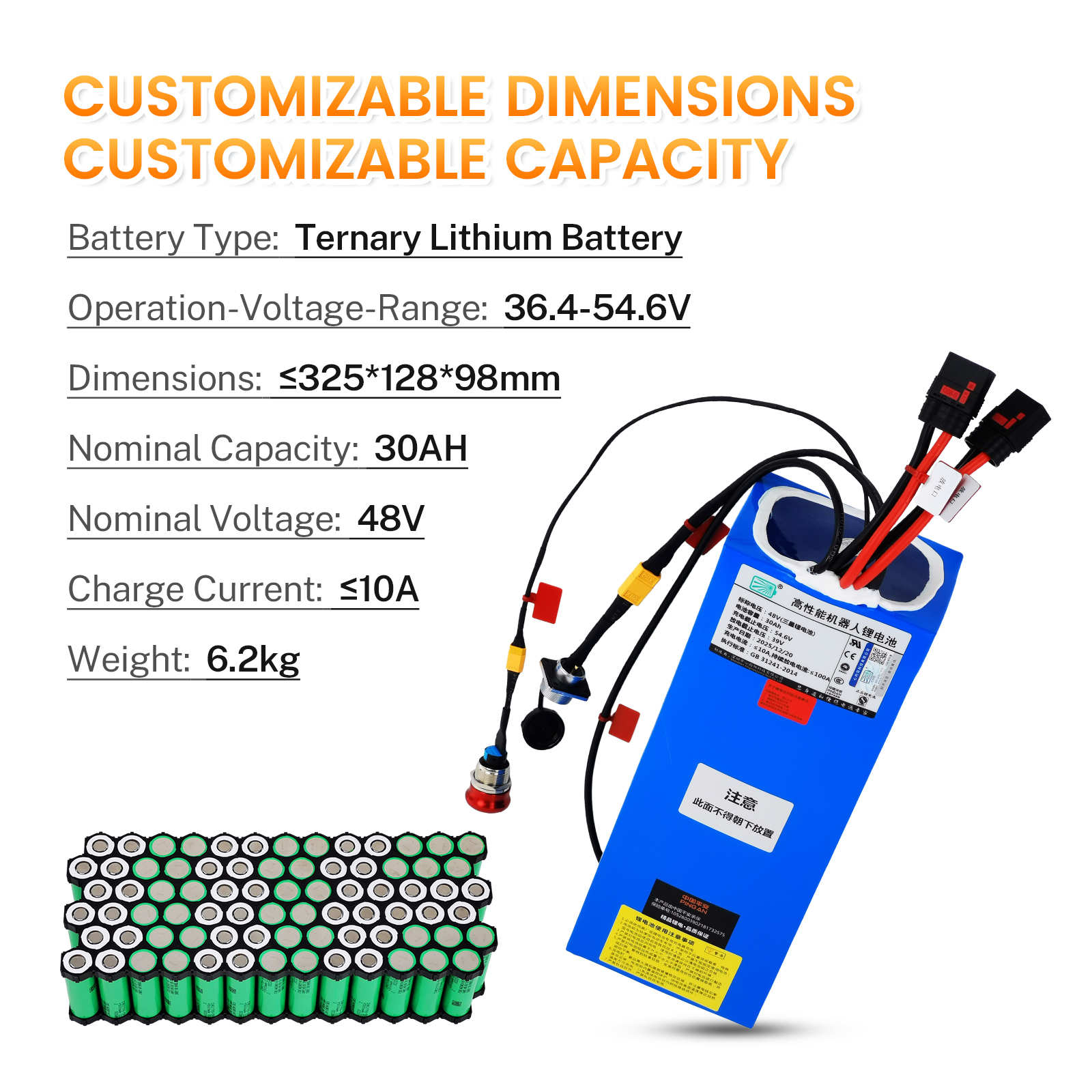

Product Parameters:

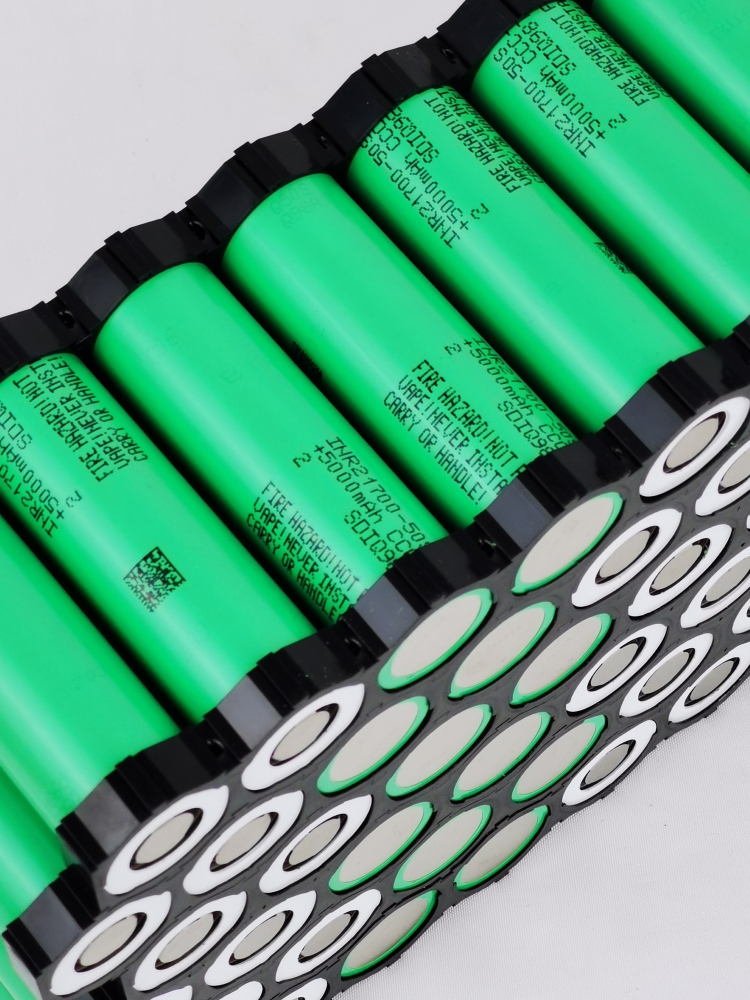

Battery Type: Ternary Lithium Battery (Powered by Samsung 21700/50S)
Nominal Voltage: 48V (13S * 3.7V)
Operating Voltage Range: 36.4V – 54.6V
Charge Cut-off Voltage: 54.6V (13S * 4.2V)
Standard/Minimum Discharge Cut-off Voltage: 39V / 36.4V (13S * 3V / 13S * 2.8V)
Rated Capacity: 30Ah (Single cell 5000mAh * 6P)

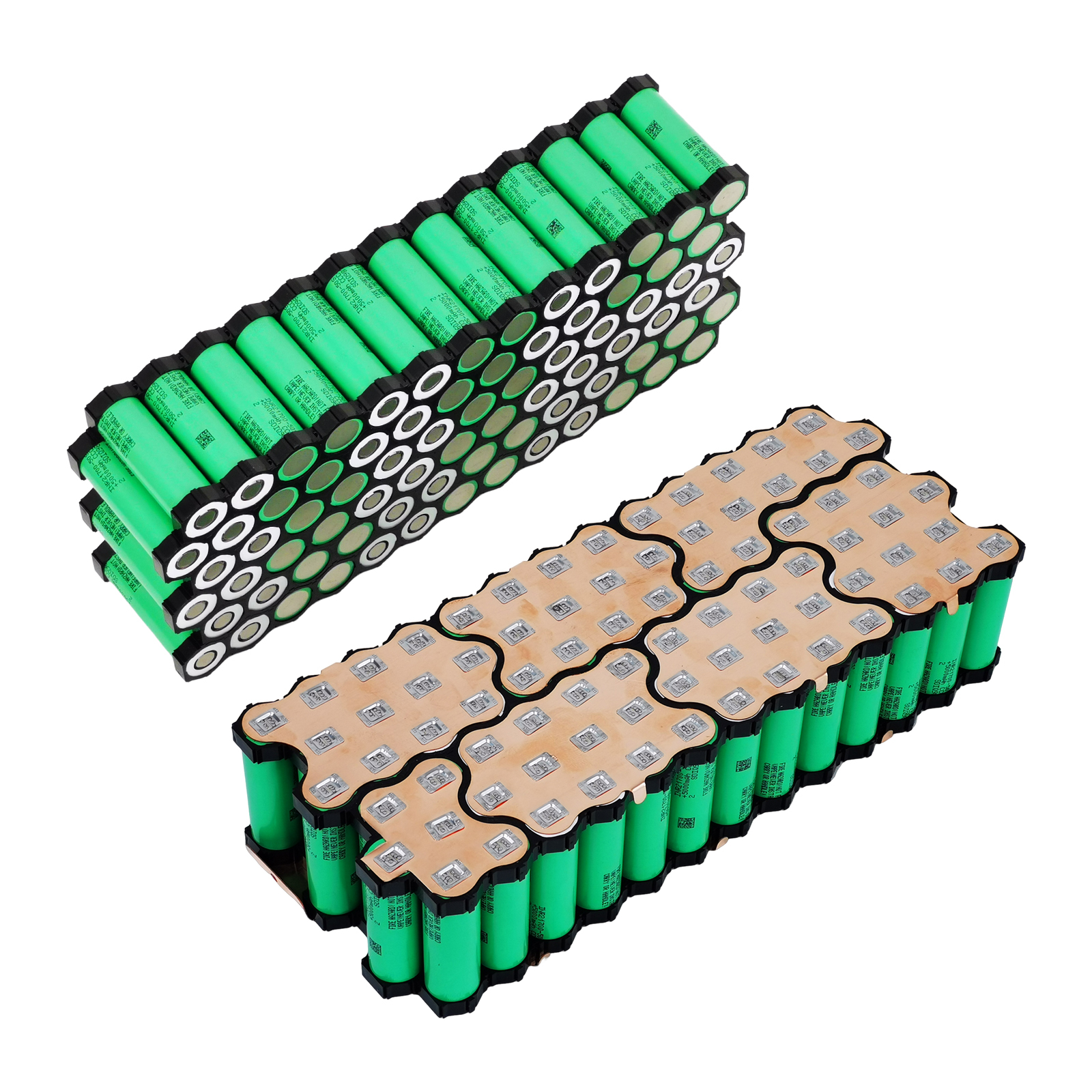

Series/Parallel Configuration: 13S6P
Dimension (LWH): ≤ 32512898mm
Weight: Approx. 6.2kg
Product Form: Battery Pack
Color: Black / Blue
Charging Current: ≤ 10A (with matching 10A charger)
Continuous/Peak Discharge Current: ≤ 100A / 150A (1 second)

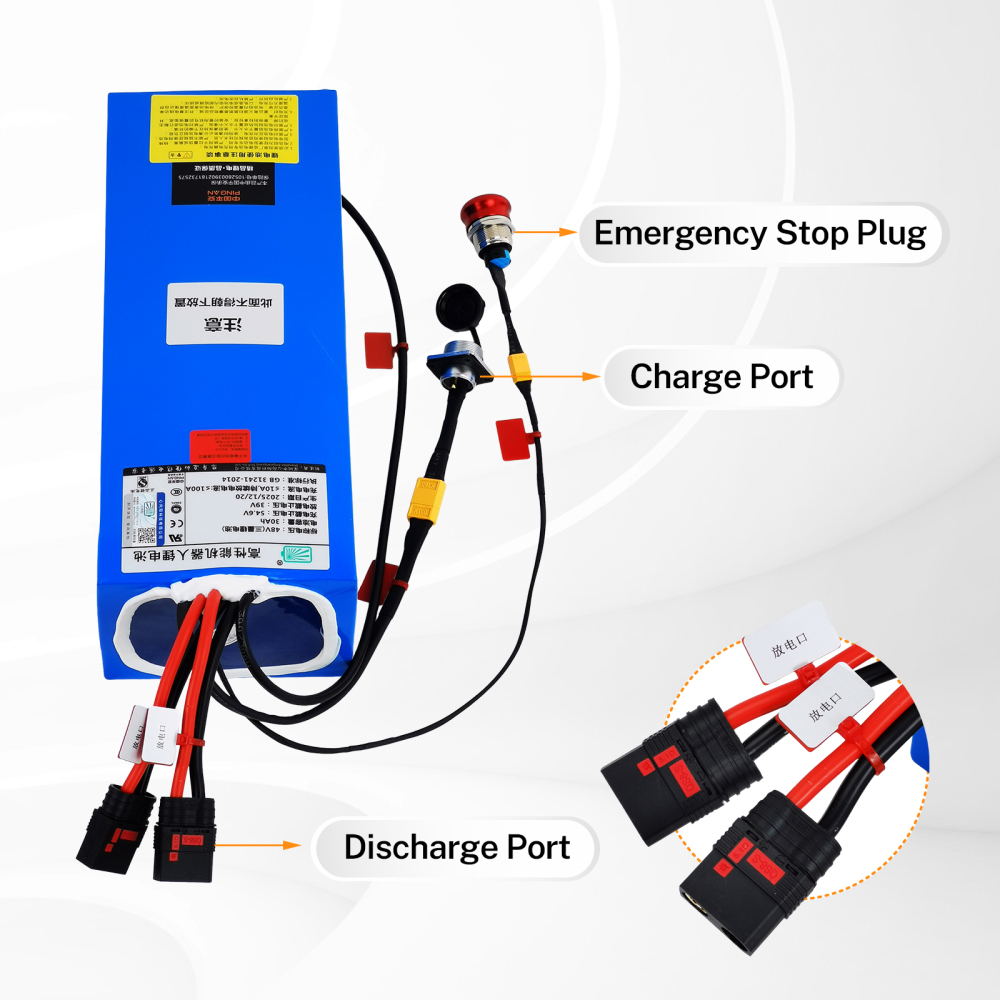

Charging Port: WS20-3 Pin Female (with XT60 female adapter, battery-side cable 25cm, adapter cable 6cm)
Discharge Port (2 pcs, 50A rated per port): QS8-S Female (cable 10cm, no terminals included)
Emergency Stop Switch: Small-head E-stop switch (mounting hole diameter 22mm, with XT30 male adapter, battery-side cable 40cm, adapter cable 6cm)
RS485 Communication: Dual-core cable, outer sheath diameter >5mm (cable length 40cm)
Communication Protocol: RS485 (Jiabaida)
Charging Temperature Range: 0°C – +45°C
Discharging Temperature Range: -20°C – +60°C
Life cycle: 1000+ cycles
Tips: To prevent incompatibility issues with your device, we kindly advise you to consult our customer service team and provide your device specifications prior to making a purchase.

About this item：
1. Premium Cell & Stable Performance: Powered by Samsung 21700 50S cells in a 13S6P configuration, this 48V 30Ah ternary lithium battery pack delivers consistent, reliable power output. The high-quality cells ensure minimal voltage fluctuations, making it ideal for precision-sensitive robot lab testing environments.
2. High Discharge Capability for Heavy Loads: With a 100A continuous discharge current and a 150A peak discharge current (1s), the battery can easily handle high-power robot actuators and transient load spikes, supporting smooth operation of industrial and research robots without performance degradation.
3. Intelligent RS485 Communication & Monitoring: Equipped with Jiabaida RS485 communication protocol, it enables real-time monitoring of battery status (voltage, current, temperature) and data transmission to the host system. This facilitates intelligent power management and predictive maintenance for lab automation setups.
4. Robust Design & Wide Temperature Adaptability: The battery operates reliably across a broad temperature range: -20°C to +60°C for discharge and 0°C to +45°C for charging, ensuring stable performance in diverse lab conditions. Its compact form factor (≤32512898mm) and lightweight design (≈6.2kg) offer flexible integration into robot platforms.
5. Safe & Durable Construction: Featuring an integrated emergency stop switch, multiple discharge ports (2x QS8-S, 50A each), and protective circuitry, the battery pack prioritizes operational safety. The durable casing and high-quality connectors (WS20-3, XT60, XT30) ensure long service life and secure connections for repeated lab use.

Package list:
Ebike battery pack*1
Charger*1
User Manual*1

Note:
When buy a new replacement battery pack, firstly must make sure the battery length is the same.
We can customized battery according to your request. Please tell us information like, voltage, capacity, size, motor power or more.
Please charge immediately after receiving. You can use your previous Charging device if it is compatible with the battery (Li-Ion - your ebike battery volt).
Make sure that the battery is charged at least every 3 months to switch to the highest performance and lifetime.

Return and Refund Policy
We offer a 15-day return policy from the date of delivery. To be eligible for a return:
- Items must be unused, undamaged, and in their original condition.
- All original packaging and accessories must be intact and complete.
- Proof of purchase (receipt or order number) is required.
- Custom-ordered or personalized items are not eligible for returns.
- Contact our customer service at jdpower@stdbattery.com to Request a return authorization.

Warehouse-Specific Shipping Details:
US Stock: - Free standard shipping within continental USA (Delivery time: 3-7 business days)
- Additional charges apply for Hawaii, Alaska, and Puerto Rico
UK Stock: - Free domestic shipping within UK (Delivery time: 1-5 business days)
UA Stock: - Free domestic shipping within UA (Delivery time: 3-7 business days)
China Stock:
- Free shipping to most countries including USA, UK, Canada, Australia, and EU nations
- EU coverage includes: Austria, Belgium, Bulgaria, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, and other member states
- Delivery time: 10-20 business days
All battery products include free shipping with no hidden charges. For special shipping requirements or remote area deliveries, please contact our customer service team for assistance.

Q: What type of this battery?
A: It is li ion battery,Chemical is Li(NiCoMn)O2.   Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.
Q: What kind of cells used on this battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.
Q: Do your battery come with charger?
A: We have normal charger and fast chargers(2A, 3A, 4A, 5A).   If you need charger please contact with us.
Q: Do your battery come with BMS?

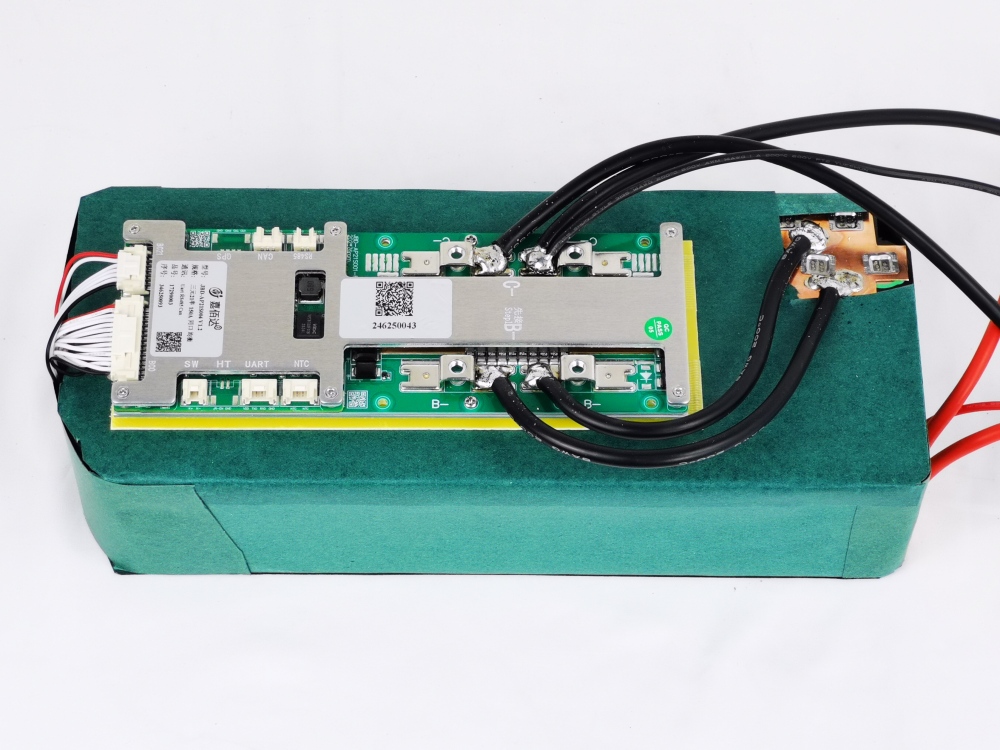

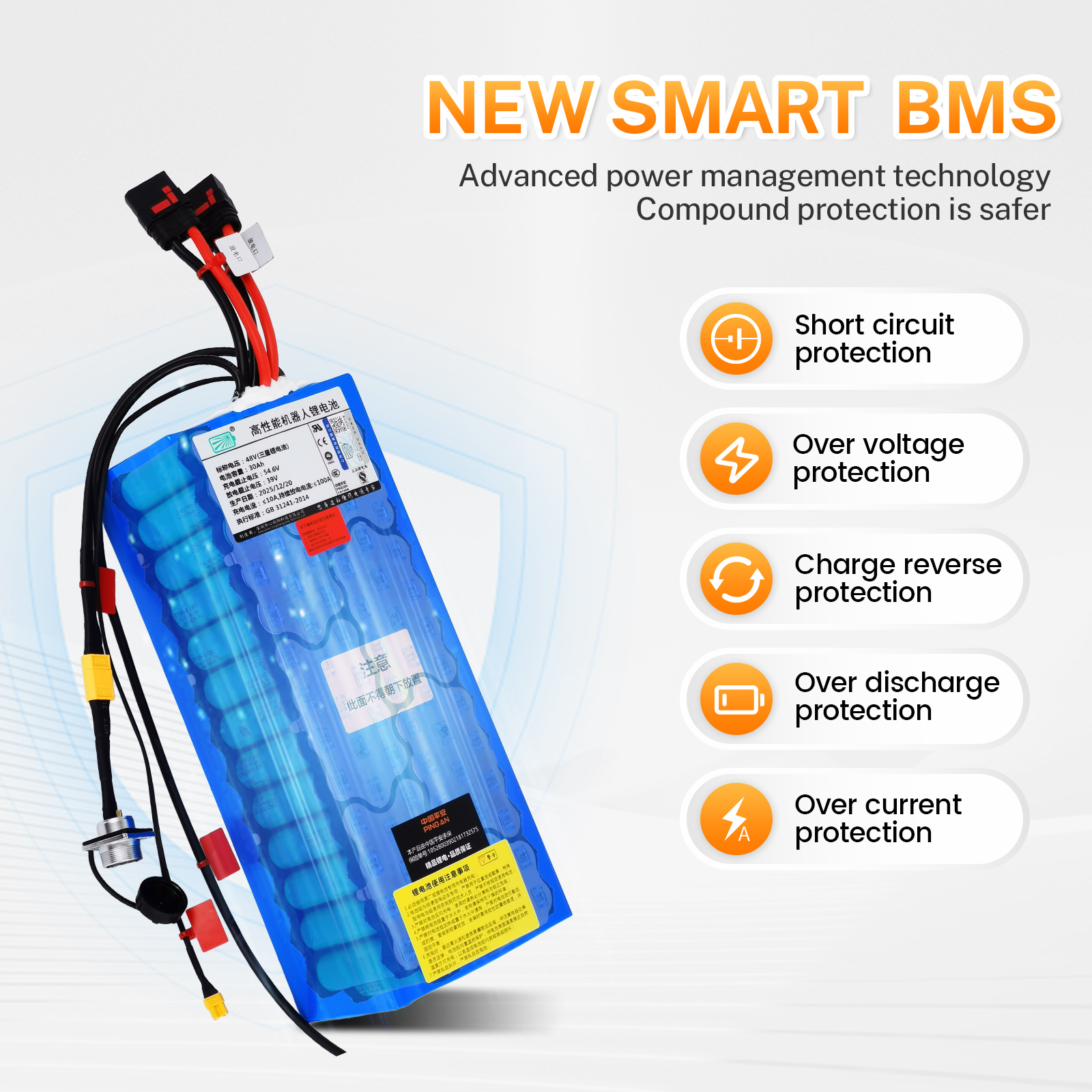

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.   Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;   Always final Inspection before shipment 100% testing and inspection to ensure the quality.
Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.   Please contact us for details.
Q: How about the lead time?
A: Samples will takes 3-7 business days.   Mass production will takes 10-30 days.   It depends on quantity.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Battery manufacture with factory, which produce all kind of high quality lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.

• We provide a one-year warranty for all e-bike batteries, power tool batteries, and custom batteries.

• If any battery develops quality issues within one month, we can process a return and refund or replacement upon verification of the issue.

• After one month, we can send you a BMS or battery cells for repair, or you may return the battery to us for servicing.

• All our e-bike batteries and power tool batteries are equipped with high-quality cells and BMS, and undergo 100% testing before shipment.

• Our global after-sales service centers are located in the United Kingdom and Los Angeles, USA.

• If your battery malfunctions within the warranty period, please send it to the nearest service center. We will repair it and return it to you.

• Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.

• Does not use or leave the battery near a heat source as fire or heater.

• Use the battery charger specifically for that purpose when recharging.

• Do not upside down the position and negative terminals.

• Do not connect the battery electrodes to an electrical outlet.

• Do not discard the battery in fire or a heater.

• Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

• Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

• Do not strike, trample or throw the battery.

• Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
